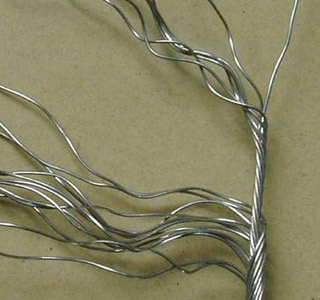

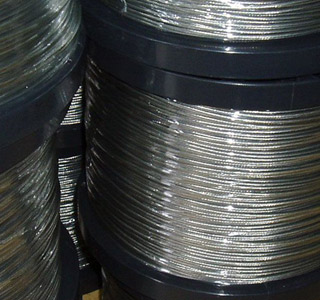

Stranded Resistance Heating Wires

• Since the heat treatment industry requires more precisely controlled stranded wires, we have developed a range of stranded resistance wires made of nickel-chromium alloy and pure nickel wire. It is usually bundled together by 7, 19 or 37 resistance wires. We are able to meet the requirements of any customer, and we always put quality and precision first. The standard resistance tolerance is +/- 5%, and tighter resistance tolerances are also available upon request.

Specifications and Characteristics for commonly used stranded resistance wire

Alloy	Total diameter nominal(mm)	Strands × size(mm)	King wire size(mm)	Resistance per meter(Ω/m)	Length per kg(m/kg)	Weight per meter(g/m)
Cr20Ni80	2.76	37 × 0.385	0.450	0.2794	28	36
Cr20Ni80	2.67	19 × 0.523	0.574	0.2850	29	34
Cr20Ni80	2.87	19 × 0.574	0.574	0.2394	25	41
Cr15Ni60	2.76	19 × 0.523	0.574	0.2902	30	34

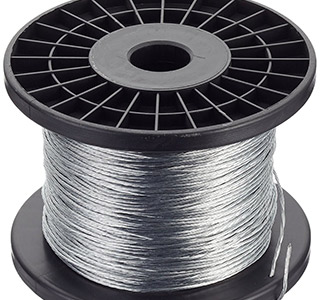

Pure Nickel(N6)	2.87	19 × 0.574	0.574	0.0198	21	47

Other stranded wire sizes and specifications are available upon request.
